METAL SHEET RACK HORIZONTAL
Efficient storage and handling of metal sheets in steel, aluminum, stainless steel, galvanized metal, …
- Drawers are 100% extendable outside the metal sheet rack
- Compact and secure storage system
- The metal sheets are immediately available
- Time saving handling, less labor time needed
- Combination with vacuum lifter, crane or fork-lift
- Only 1 person needed for handling
Secure storage of metal sheets, aluminum sheets, stainless steel sheet
Your metal sheets are stored in a secure and compact metal sheet rack. Every sheet metal is directly accessible due to the 100% rolling out drawers. It’s the perfect storage solution for all metal sheet products: steel sheets, aluminum sheets , stainless steel sheets, galvanized sheets and many others. Each individual metal sheet can be transported with a crane, a jib cran, a transporter bridge or with a vacuum lifter.
Features of the horizontal metal sheet rack: storage of sheet metals
This metal sheet rack can store metal sheets up to 6 meters long. The maximum loading capacity of the roll out drawers is 3 tons per drawer. More loading capacity is possible on demand.
For even more storage capacity, this rack can be combines with our metal sheet forklift rack. To learn more, check out Metal Sheet Warehouse Rack.
| METAL SHEET RACK HORIZONTAL | ||||
| Sheet dimensions | Type | Quantity of drawers | Height between drawers | Loading capacity of drawers |
| 2000 x 1000 mm | HSR 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 2500 x 1250 mm | HSR 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 3000 x 1500 mm | HSR 300 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 4000 x 1500 mm | HSR 400 - 150 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 4000 x 2000 mm | HSR 400 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 6000 x 2000 mm | HSR 600 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 6000 x 2500 mm | HSR 600 - 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| Other dimensions and loading heights are also possible, ask about our solutions. | ||||
Video: Horizontal storage of sheet metals
This horizontal storage of metal sheets guarantees you immediate and direct access to every drawer = every metal sheet. The drawers, which are provided with wheels, are 100% extendable outside the rack. By simply opening the doors and the desired drawer, you gain direct access to your metal sheet. It’s a compact and clear storage method for easy handling en secure working.
Choose flat drawers or profile spacers
Flat drawers for direct loading or loading with pallet
Spacers for loading with a fork-lift, without pallet
Locking of the drawer: easy and secure
METAL SHEET RACK HORIZONTAL – HANDLING
Using the horizontal storage systems with roll-out drawers for metal sheets and other sheets

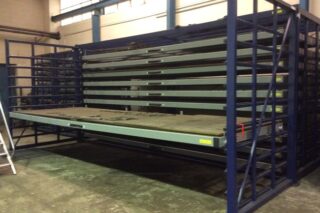

100% roll out drawers = 100% direct access to metal sheets, aluminum sheets, galvanized sheets, …
The horizontal drawers are provided with wheels and are 100 % extendable outside the rack. Every drawer and every sheet is directly accessible for transport to or from your machine. Your sheets in steel, aluminum, stainless, galvanized are always completely accessible for loading or unloading.
It’s a compact and well-arranged method for easy handling, where safety and fast handling are the key points.
COMPACT STORAGE
Little time required for handling your metal sheets - reduces labour time significantly.
PIVOTING DOORS
Metal sheets are always accessible
ROLL OUT DRAWERS
Every drawer is directly accessible
COMBINATION WITH LOADING CRANE
For optimal usage of the horizontal metal sheet rack
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9
Photo 10
Photo 11
Photo 12
Photo 13
Photo 14
Photo 15
Photo 16
Photo 17
Photo 18
Photo 19
Photo 20
Photo 21
Photo 22
Photo 23
Photo 24
Photo 25
Photo 26
Photo 27
Photo 28
Photo 29
Photo 30
Photo 31
Photo 32
Photo 33
Photo 34
Photo 35
Photo 36
Photo 37
Photo 38
Photo 39
Photo 40
Photo 41
Photo 42
Photo 43
Photo 44
Photo 45
Photo 46
Photo 47
Photo 48
Photo 49
Photo 50
Photo 51
Photo 52
Photo 53
Photo 54
Photo 55
Video 1
Metal sheet rack horizontal with rotating doors Efficient transport of sheets with vacuum system.
Video 2
Horizontal storage of sheet metal and cutoffs and handling with magnet or vacuum system. Model for sheets up to 6 m.
Video 3
Direct acces to every sheet due to the fully extendable drawers.
Video 4
Horizontal storage rack for sheets of 6 m. Safe handling with vacuum system.
Video 5
Depalletizing and storage of metal sheets with straps
Video 6
Handling of metal sheets with vacuum system
Video 7
Horizontal storage of sheets of 6 m in roll-out drawers
Video 8
Double-sided model with manually extendable drawers for sheets of 3 x 1,5 m
Video 9
Roll-out drawers equipped with levers for easy roll-out of large and heavy plates
Video 10
Double-sided system for loading with forklift and unloading with crane
Video 11
Motorized version - Electronic control panel to extend the drawers automatically
Video 12
Motorized version - Loading and unloading of metal sheets in and out of the horizontal rack
Video 13
Motorized version - Handling of sheets with portal and vacuum system
| METAL SHEET RACK HORIZONTAL | ||||
| Sheet dimensions | Type | Quantity of drawers | Height between drawers | Loading capacity of drawers |
| 2000 x 1000 mm | HSR 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 2500 x 1250 mm | HSR 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 3000 x 1500 mm | HSR 300 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 4000 x 1500 mm | HSR 400 - 150 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 4000 x 2000 mm | HSR 400 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 6000 x 2000 mm | HSR 600 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| 6000 x 2500 mm | HSR 600 - 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
| Other dimensions and loading heights are also possible. | ||||
If you would like to learn more about the dimensions and prices, please contact us.
