Mobile frames rack: Manual operation

Efficient storage and handling of metal sheets or metal sheet rest pieces

  •  Easy movable frame racks
  • Compact storage method
  • Clear structure and overview of all metal sheets and rest pieces
  • Only 1 person needed for the handling
  • Time saving, less labour time needed
  • Secure and safe handling of metal sheets
  • Less floor space needed
  • Cost reduction: less labour time
  • Metal sheets are almost direct accessible

This metal sheet rack with sliding frames is operated manually. There are 2 versions of this frame rack with manual operation: heavy loading = 3000kg/frame and light loading 600, 500 or 400 kg/frame depending on the model. If you require a bigger loading capacity per frame, check out our Mobile frame rack: Electrical operation..

Quick acces and clear overview of your metal sheets, rest pieces and other sheet material

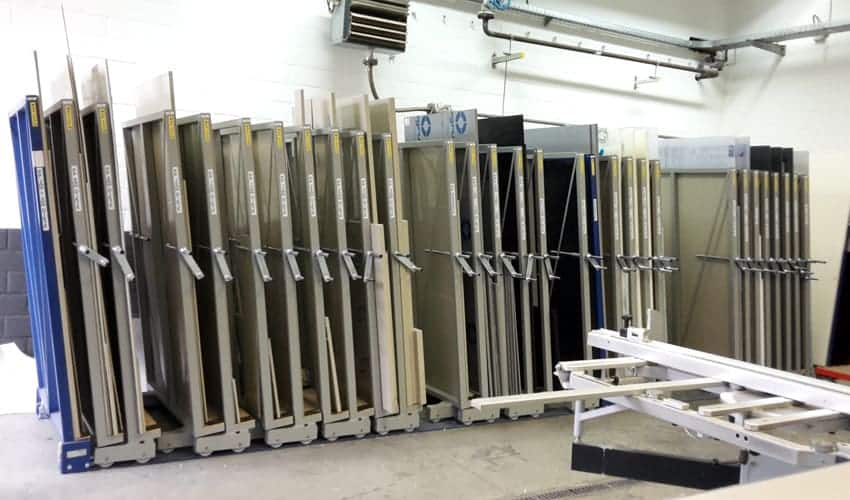

The mobile metal sheet rack with sliding frames ensures a compact and well-structured overview of all your metals sheets, stainless sheets, aluminium sheets, … The frames are equipped with wheels and are mounted on 2 parallel rails for displacement. You can manually move the frames to the left or the right. This creates an aisle you can enter to easily and safely pick or load the desired metal sheet.

If you are more interested in a completely electrical version, view our Metal frame rack with electrical operation.

Specifications of the metal sheet frame rack: manual operationThis mobile frame rack for sheet metals is available in 2 versions:

This mobile frame rack for sheet metals is available in 2 versions:

- Type RML: light version with a loading capacity per frame of 400, 500, 600 kg. This model is used when you have a bigger quantity of small-sized metal sheets.

- Type RM: heavy version with a loading capacity of 2500 kg. This model is used for a bigger volume of heavy sheets.

Mobile frame rack: Manual
Sheet dimensions Type Length (a) Height (c) Loading space (w) Capacity drawer Quantity of drawers Rack width (b)
2000 x 1000 mm RML 100 2020 mm 1090 mm 65 mm 600 kg 6 - 25 1670 - 4425 mm
2500 x 1250 mm RML 125 2520 mm 1290 mm 65 mm 500 kg 6 - 25 1670 - 4425 mm
3000 x 1500 mm RML 150 3020 mm 1590 mm 65 mm 400 kg 6 - 25 1670 - 4425 mm

3000 x 1500 mm RML 150 1T 3020 mm 1630 mm 75 mm 1000 kg 6 - 25 1730 - 4675 mm
4000 x 2000 mm RM 200 1T 4030 mm 2150 mm 75 mm 1000 kg 6 - 25 1730 - 4675 mm

2000 x 1000 mm RM 100 2030 mm 1130 mm 140 mm 2500 kg 6 - 25 2210 - 6675 mm
2500 x 1250 mm RM 125 2530 mm 1120 mm 140 mm 2500 kg 6 - 25 2210 - 6675 mm
3000 x 1500 mm RM 150 3030 mm 1330 mm 140 mm 2500 kg 6 - 25 2210 - 6675 mm
4000 x 2000 mm RM 200 4030 mm 2150 mm 140 mm 2500 kg 6 - 25 2210 - 6675 mm

Video: Storage of steel sheets in the mobile frame rack for metal sheets: manual operation

The sliding frame racks are moved by shoving the lever which is placed on the frames. You can shove several frames at the same moment, the quantity of frames to slide is dependent the total weight of the metal sheets which are placed in the frames. The levers protect also the metal sheets.

Hydraulic version with crank

The hydraulic operation of this metal sheet frame rack is similar to the operation of the mobile electric version, but the movement of the frames is done with a lever instead of an electric controller.

Ask for our brochure
