Cantilever with pivoting arms

Efficient storage of long materials - steel profiles, tubes, pipes, bars, angle iron,...

  • Compact and secure storage system
  • The cantilever arms are completely extendable outside the rack
  • Easy and fast access
  •  Secure and save in handling
  •  Time saving: less labour time
  •  Up to 2000 kg per drawer
  •  Usage of crane, no forklift needed
  •  Single-sided or double-sided racks
  • Only 1 person required for handling

Compact storage of long profiles = round, square, flat, rectangular profile- tube- bar- strip – angle iron in steel, aluminum, stainless steel, …

This cantilever with pivoting arms is ideal for the storage of tubes, bars, profiles, angle iron in steel, aluminum, stainless steel, … In this cantilever rack, you can store long profiles of 3 m and 6 m. Your profiles are directly accessible because the levels can be completely extended from the cantilever rack. The drawers are then free for loading and unloading profiles with a crane.

The cantilever racks with pivoting arms is available in 12 different models. Materials with a length up to 3000 mm or up to 6000 m can be stored in single- or double-sided models with 5, 6 , 7 loading levels. The maximum loading capacity per level is 2000 kg. Accordingly, the total capacity can go up to 28,000 kg per 21 square meters (7 levels – double sided).

  Model 5 levels Model 6 levels Model 7 levels
  Single-sided Double-sided Single-sided Double-sided Single-sided Double-sided
Rack height 96” 96” 96” 96” 96” 96”
Drawer depth 20” 20” 20” 20” 20” 20”
Drawer height 11” 11” 8” 8” 7” 7”
Quantity of drawers 5 10 (2x5) 6 12 (2x6) 7 14 (2x7)
Loading capacity/drawer 2 ton 2 ton 2 ton 2 ton 2 ton 2 ton
Loading capacity/rack 10 ton 20 ton 12 ton 24 ton 14 ton 28 ton

For other dimensions or loading capacity, have a look at the possibilities of the roll out cantilever rack.

The roll out cantilever rack is suitable for profiles of 6m, 12m, 15m up to 20m, and loading capacities of more than 2,000 kg. With this roll out rack you can determine the loading capacity and the dimensions of the indicidual levels.

Video: storage of profiles, tubes, bars, steel strip, flat bars, angle iron in steel, stainless steel, metals, …

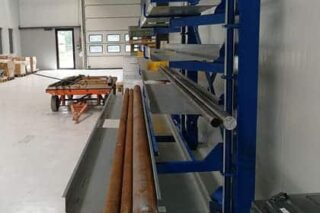

With the support arms, you can securely extract every drawer from the rack. When you have manually extended the drawer, the profiles, pipes or other long materials are completely available for transport. In this way, you can easily load profiles with the loading bridge or with the loading crane.

Would you like to roll out the drawer with a crank instead of manually pulling it out? Take a look at our storage of profiles in rolling out drawers.

    Ask for our brochure
